Architects: FRENTE / Juan Pablo Maza

Location: Ordos, Inner Mongolia, China
Design year: 2008
Construction year: 2009
Curator: Ai Weiwei, Beijing, ChinaClient: Jiang Yuan Water Engineering Ltd, Inner Mongolia, China
Constructed Area: 1,000 sqm aprox



concept diagrams

The immediate context drove the decision of designing an introvert villa. As a result of the extreme weather, it has been chosen to bury the house taking advantage of the generosity of underground temperatures and therefore neutralizing the harsh winter and summer weather conditions.
On the other hand, realizing the good weather during spring and autumn times, the villa responds to this duality by leaving a part of the construction completely exposed, and therefore completely extrovert. This way, the villa celebrates the duality of an introvert-extrovert house.

section 01

By taking advantage of the apparent duplicity of the required areas, eighty percent of the program has been maintained in a “big villa” (buried), which lives around an internal courtyard, in a scheme that promotes family interaction and emphasizes the sence of community. The duplicate program is separated and put into a mass equals to the size of the courtyard, thus creating a private “small villa” (floating) which gains the views and gives any family member the opportunity of temporal isolation.


By dividing the program (underground and floating), the ground floor is freed allowing it to be used as public space without loosing privacy.
The main landscape idea, is to suggest a forest within a desert environment. This forest is made out of steel columns that act as “camouflage” for the floating villa’s structure, and also gives the visitors a consciousness of trespassing private area.

upper level plan

section 04

section 05

section 02

ground level plan

section 03

lower level plan

section 06





 UNStudio designed the terminal with a large span to create uninterrupted views that aid navigation, and the red corner detail acting as "a crossing-point and point of recognition."


 "The design for the new airport embraces the traveller by embodying the circumstance of the site, " said architect Ben van Berkel. "Moments of both leaving and returning are celebrated by the large span, open spaces and high ceiling of the terminal structure – reflecting the ways in which such gestures were employed in the great railway stations of the past."

Inside the terminal, a large structure covered in a web of wooden beams descends from the ceiling and creates a central hub around which passengers circulate.

At the centre of this structure is an exterior patio enclosed in glass that allows for continuous views across the terminal.

The building is wrapped in full-height glazing that creates a light-filled interior with views of the Caucasus Mountains.

UNStudio was also responsible for the design of other buildings on the site including a meteorological station and air traffic control tower, as well as masterplanning the surrounding landscaping.

The concrete core of the air traffic control tower is clad in a perforated skin that draws in air for ventilation and allows lighting behind it to illuminate the tower at night.

 Here's some more information from UNStudio:
Ben van Berkel / UNStudio's Kutaisi International Airport in Georgia completed
UNStudio's recently completed Kutaisi International Airport serves domestic and international flights for use by tourists, national politicians and international diplomats. The airport is destined to become a central hub, with up to one million travellers targeted in 2014-2015. Current figures for the airport show 30 flights per week, with an increase to 40 expected in Spring 2014, by which time direct flights from Western Europe to Kutaisi will also be possible.

UNStudio's design comprises the full airport development, including a revision of the runway, the master plan for the landscape and planned future development thereof, the terminal building, offices, a meteorological station and the air traffic control tower.


  The architecture of the terminal refers to a gateway, in which a clear structural layout creates an all-encompassing and protective volume. Both the exterior corner detail – which functions as a crossing-point and point of recognition – and the so called 'umbrella' structure within the terminal building – which operates as a roundabout for passenger flows – operate as the two main architectural details around which all of the airport functions are organised.


The umbrella further guarantees views from the terminal plaza to the apron and to the Caucasus on the horizon and vice versa. The central point in the umbrella is an exterior patio which is used for departing passengers. The transparent space around this central area is designed to ensure that flows of passengers are smooth and that departure and arrival flows do not coincide.
Ben van Berkel: "The design for the new airport embraces the traveller by embodying the circumstance of the site. Moments of both leaving and returning are celebrated by the large span, open spaces and high ceiling of the terminal structure - reflecting the ways in which such gestures were employed in the great railway stations of the past."


Photography is by Nakaniamasakhlisi.

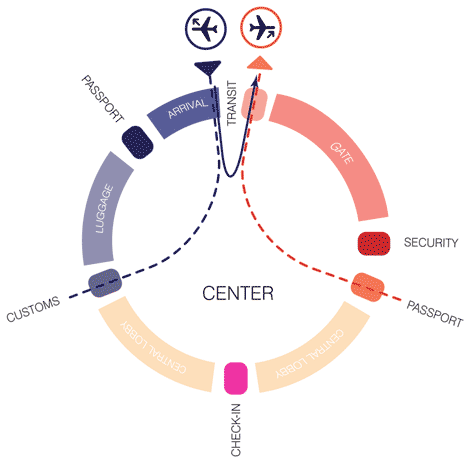

Organisational diagram

 The design organises the logistical processes, provides optimal security and ensures that the traveller has sufficient space to circulate comfortably. Serving as a lobby to Georgia, the terminal will in addition operate as a café and art gallery, displaying works by young Georgian artists and thereby presenting a further identifier of contemporary Georgian culture.
The 55m high Air Traffic Control Tower and its supporting office/operational building is designed to complement the design of the terminal. The tower’s strong appearance makes it a beacon of the airport and surrounding area. The traffic control cabin on the top level forms the focal point of the tower, with a 360 degrees view on the surrounding landscape. A spacious and comfortable interior ensures a workspace for 4-8 operators with optimal concentration. The exterior of the tower is clad with a perforated skin on a concrete core to use wind for ventilation purposes. LED Light in-between the skin and the core enhance the beacon effect of the tower at dusk and dawn by changing colour whenever there is a fluctuation in wind speed.

Site Plan

 The design for the new airport incorporates numerous sustainable elements. A large onsite underground source of natural water provides the basis for the reduction of energy consumption through concrete core activation and use for sprinkler basins. The floors of both the terminal and the traffic control tower will utilise this water for maintaining a regulated temperature in the two volumes. In the terminal building cantilevered roofs provide sun shading on south and southwest zones. A hybrid low pressure ventilation system is integrated into the terminal's main structure and there is a grey water collection system in the floor underneath the terminal building. A future aim is to present Kutaisi airport as Georgia’s first airport to incorporate a strict segregation of waste and establish a recycling system which could be further implemented into new and existing projects in Georgia.
Section

 The project was designed and constructed in two years, under lead consultancy of UNStudio, with the airport already having begun operations by September 2012. Both design and construction saw the involvement of numerous local and international companies, with openness and knowledge sharing proving to be essential to fulfilling the tight schedule. The steel structure of the terminal – produced and shipped from Hungary – recently won a European Steel Prize award.
It's official. After being shelved last fall for its £140 million price tag, Diller Scofidio + Renfro's ambitious plan to transform a city garden in Aberdeen, Scotland, into an aerial web of granite-paved greenways is being scrapped. Aberdeen's city council has announced its redevelopment plans for the city center, which include only a £20 million allowance for pedestrian amenities. As city councillor Fraser Forsyth told the Evening Express, the Granite Web—as the project is known—has entered the realm of a "totally imaginary situation" alongside "unicorns and tooth fairies." The firm's design, which bested Foster + Partners in a competition last year, had lots of public support. But in August, the proposal lost in the city council in a close vote, 22–20. This week's decision nailed the coffin shut for DS+R's exuberant plan, meaning that Aberdeenians will lose out on a groovy subterranean amphitheater, sloping gardens that seem to pop out of the landscape, and the general cool factor of walking around on a giant sculpture.
The very good news is that the just-approved £300 million package will go to improving schools, roads, and cultural centers—you know, things cities actually need.

















Images courtesy of Diller Scofidio + Renfro
